DL Series – Pleated Filter Cartridges

DL Series pleated cartridges are pleated from polyester fibre cloth, which has good mechanical properties and high-temperature resistance and keeps its strength in strongly acidic service; it is not suitable for hot alkaline conditions. The medium and centre core are potted with both end caps as one piece to ensure sealing at both ends. The pleated design gives a large filtration area, high flow and long service life, reducing change-out frequency and filtration cost.

Learn more

Home » DL Series – Pleated Filter Cartridges

Overview Specifications Ordering Information Downloads

BDL Series Pleated Filter Cartridges are washable, reusable, and durable with high dirt holding capacity, so replacement is required less. An extended life span makes the cartridge more economical.

Features

Pleated design increases surface area and contaminant removal
Longer filtration life for fewer change-out and less mainte-nance
Low pressure drop
Designed for general water filtration purposes

Applications

R.O. Pre-Filtration
Process water, Drinking water, Cooling water, Waste water, Deionized water, Plating chemicals

Specifications

Dimension
Outer Diameter	68mm, 115mm
Inner Diameter	28mm
Length	9.75”, 9.87”, 10”, 20”, 30“, 40”
Material of Constructions
Media	Polyester, PP
End cap	PU, Plastisol
Core	PP
Performance
Max. Operating Temperature	37.8℃(100℉)
Max. Operating DP	4 bar(58psi)
Flow Rate per 10” Cartridge	3~10GPM, Depends on different removal rating

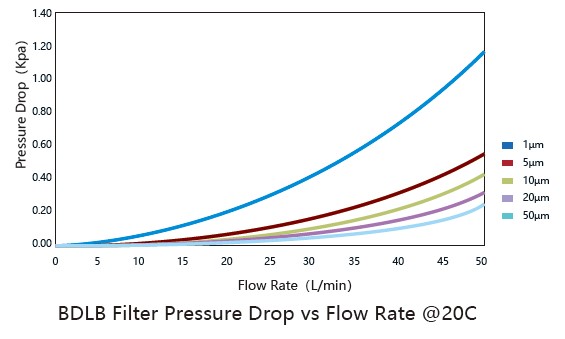

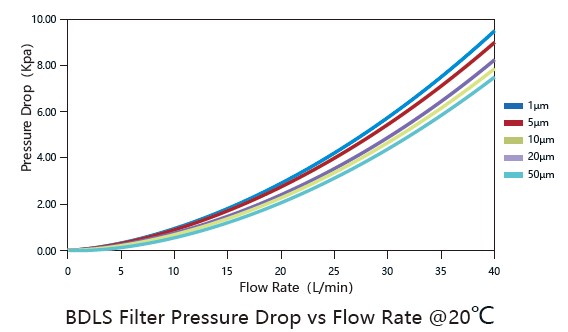

Pressure Drop vs Flow Rate

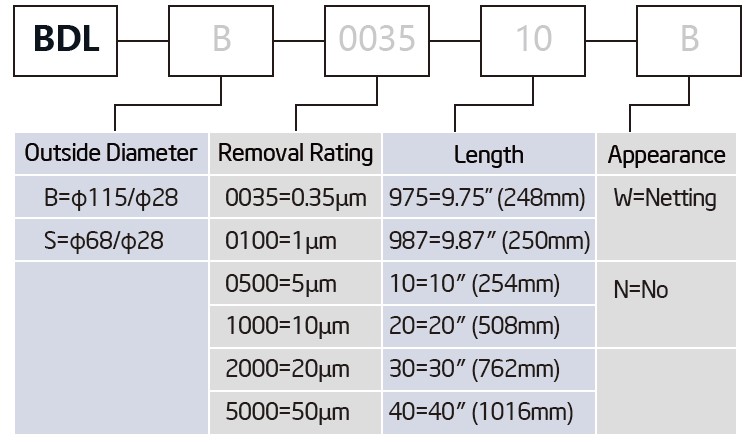

Order Information
