STV Series PVDF Hardware Filter Cartridges
STV Series PVDF Hardware Filter Cartridges
STV Series cartridges are built from PTFE, giving excellent tolerance of organic and inorganic corrosive media plus the natural hydrophobicity of the medium. They are widely used to filter aggressive solvents, strongly corrosive liquids and strong oxidisers. All-PVDF support, drainage and core construction allows the cartridge to withstand aggressive solvents and hot process liquids.
Learn moreHome » STV Series PVDF Hardware Filter Cartridges
Specifications below are reproduced from the manufacturer's original Chinese datasheet. Ask us for an English translation of any section.
STV系列滤芯采用聚四氟乙烯制作，具有极佳的有机、无机化学腐蚀性物质的耐受性以及滤材的天然疏水性，广泛用于强溶剂、强腐蚀性液体以及强氧化性液体的过滤。采用全PVDF的支撑导流以及骨架，使产品具有耐受强腐蚀性溶剂以及高温料液的性能。
▎产品特点
- 全PVDF组件，低析出
- 高通量、低压差
- 耐受离线及在线蒸汽灭菌
- 100%出厂前完整性测试
▎应用领域
- 强氧化性液体过滤
- 腐蚀性液体的预过滤及终端过滤
- 溶媒性物料的过滤
- 各类气体的过滤
▎产品规格
| 外径 | 69mm |
| 长度 | 5”,10”,20”,30”,40” |
▎结构材质
| 滤材 | 疏水PTFE膜 |
| 导流层 | PVDF |
| 中心杆/外壳/端盖 | PVDF |
| 密封圈 | 见订购信息选型表 |
▎工作特性
| 最高连续使用温度 | 80℃ |
| 最大工作压差 | 4.5Bar@20℃ 2.4Bar@80℃ |
| 在线蒸汽灭菌 | 135℃/30min |
▎产品保证
- 滤芯均在十万级洁净车间生产
- 严格执行ISO9001:2015质量管理体系
- 100%完整性测试
- 每只滤芯拥有唯一的序列号，全程可追溯

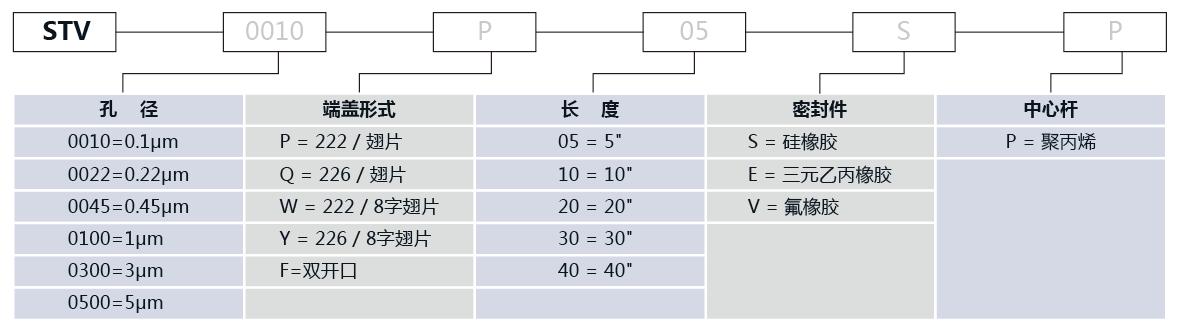

▎订购信息
