STB Series Polyester Pleated Filter Cartridges

The STB Series polyester pleated cartridge is a cost-effective depth filter with a broad application range. Its all-polyester construction withstands temperatures up to 120 °C, and the 2.66 in and 2.77 in outside diameters suit small-size housings. Every cartridge is manufactured in a cleanroom and is highly clean at delivery.

Learn more

Home » STB Series Polyester Pleated Filter Cartridges

Overview Specifications Ordering Information Downloads

Darlly STB Series Pleated Polyester Depth Media Filter Cartridges offer an efficient and economical filtration option with broad applications. The all-polyester construction allows higher temperature use (up to 120℃). The 2.6" or 2.7" OD allows use in housings where larger cartridges do not fit.
Manufactured in a clean room environment to maintain high standards of purity and cleanliness.

Features

Increased surface area due to pleated design
High temperature resistance
High flow rate and low pressure drop

Applications

Process Water
Solvents
Fine chemicals
Plating Chemicals
Wastewater
Produced water
Hydrocarbons
Synthetic Lubricants

Specifications

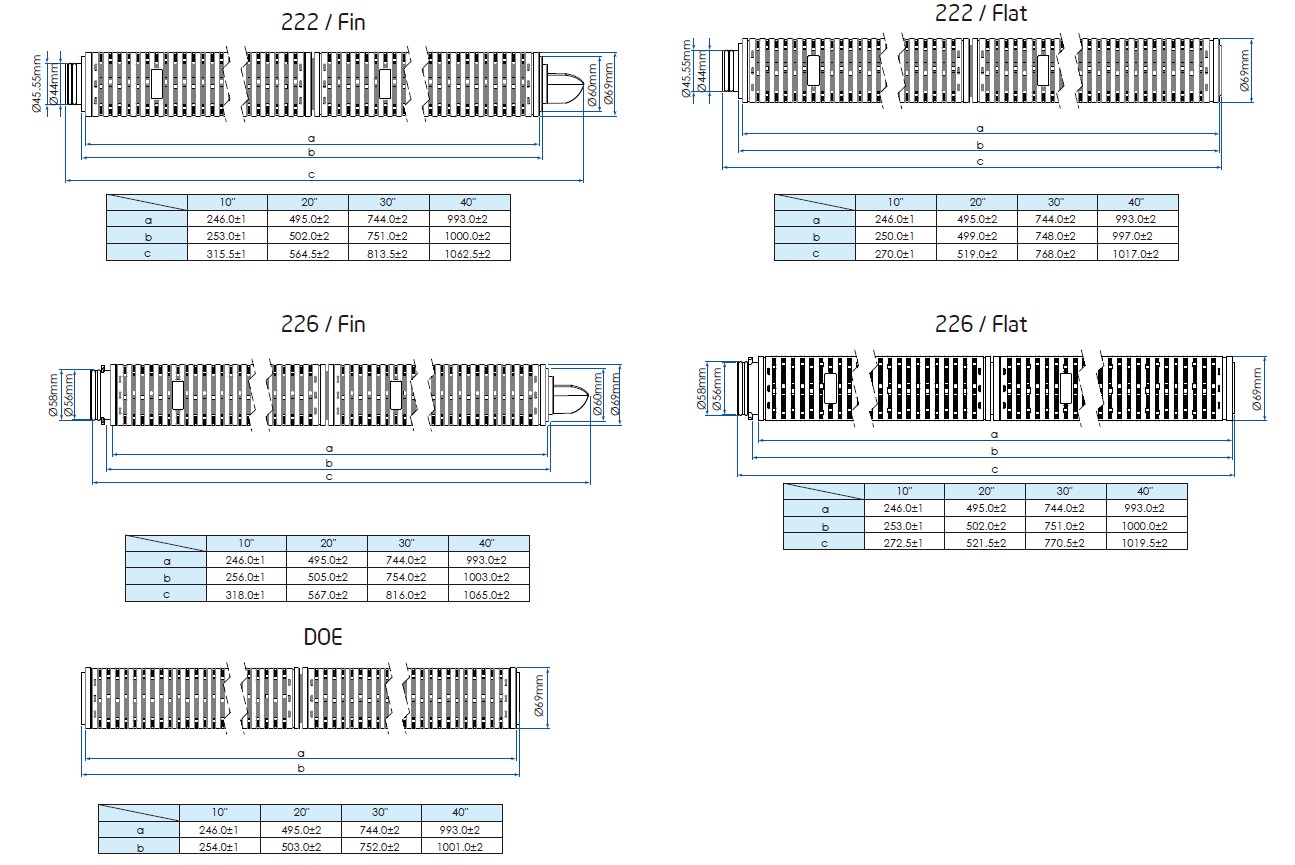

Dimension
Outer Diameter	66mm(Netting), 69mm(Cage)
Lengths	10”, 20”, 30”, 40”
Material of Constructions
	STB 66(Netting)	STB 69(Cage)
Filtration Media	Polyester	Polyester
Support Media	Polyester	Polyester
End Caps	Polyester	Polyester
Outer Netting	Polyester	Polyester
Seal Material Options	Silicone, EPDM, NBR, FKM, E-FKM
Operating Limits
Max. Operating Temperature	80℃(176℉)
Max.Operating DP	4 bar(58psi)@20℃(68℉)

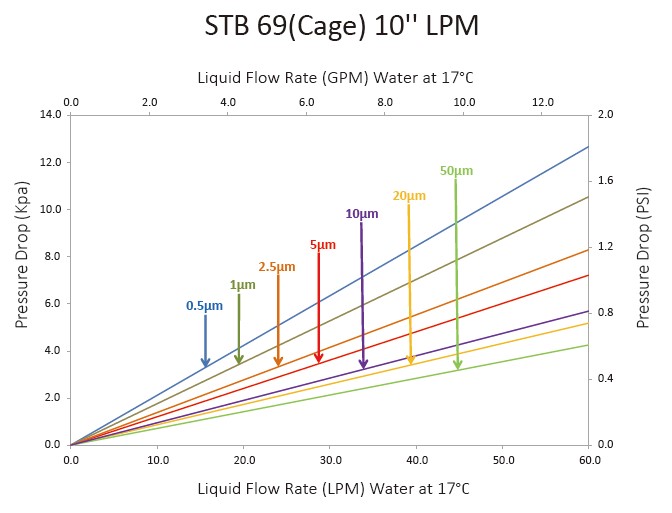

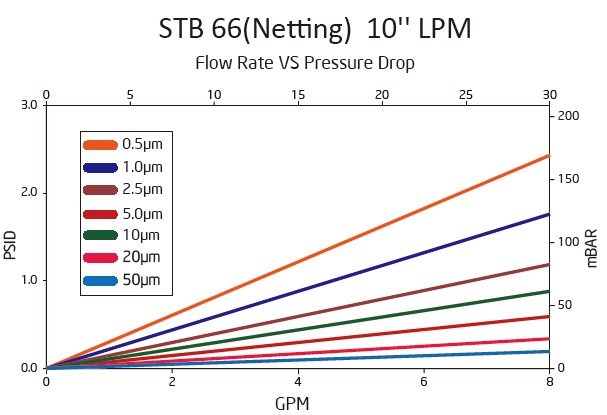

Flow Rate

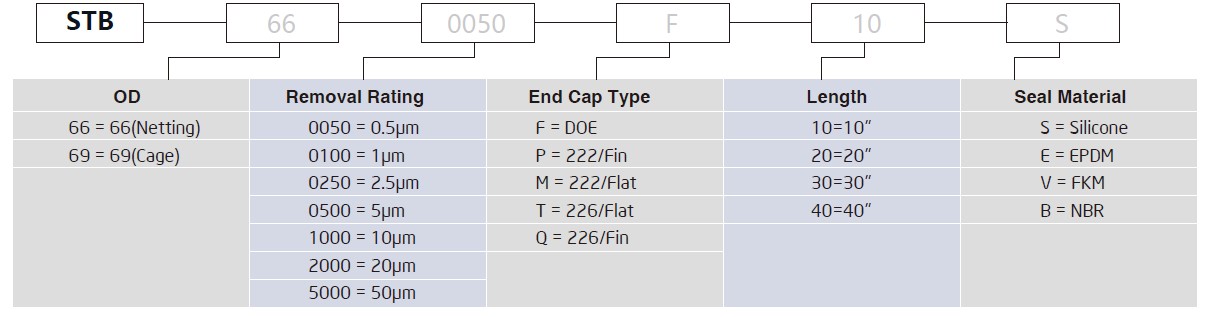

Order Information

Downloads
