131 Series Pleated Filter Cartridges

The 131 Series is designed for high-flow duties in the panel industry. Its very large filtration area delivers high flow with fewer change-outs, reducing downtime. A range of filter media is available to cover most process applications.

Learn more

Home » 131 Series Pleated Filter Cartridges

Overview Specifications Ordering Information Downloads

131 Series Pleated Fliter Cartridges are suitable for filtration in the manufacture process of LCD panel, especially suitable for high flow rate requirement in the peocess. It can meet the 7-10 grade line which has requirement of 250L/min flow rate.

Features

Save the cost, easy to repalce
- Large filtration area and high flow rate and dirt holding capability extend the life time of the filter cartridge and reduce the time of replacing the filter cartridge and shutting down time. It reduce the system cost efficiently.
Many media type and micron rating options
- According to different filtration requirements it can choose PP/PES/PTFE media. Micron rating is from 0.01um to 50um for options.
Material is safe and reliable
- All the parts of SemigaTMQF83 Series pleated filter cartridge use high purity of electronic grade PP material. It is thermally welded with media without using any glue and active agent to reduce the risk of filter cartridge precipitation and make sure the filtration safe.

Specifications

Dimension
Outer Diameter	131mm
Lengths	10”
Material of Constructions
Media	PP, PES, Hydrophobic PTFE, Hydrophilic PTFE
Support Layer	PP
Cage/Core	Polypropylene
End cap	Polypropylene
Seal Material Options	EPDM, FKM, E-FKM
Operating Limits
Max. Operating Temperature	80℃
Max. Operating DP	4.0 bar @ 20°C 2.4 bar @ 80°C

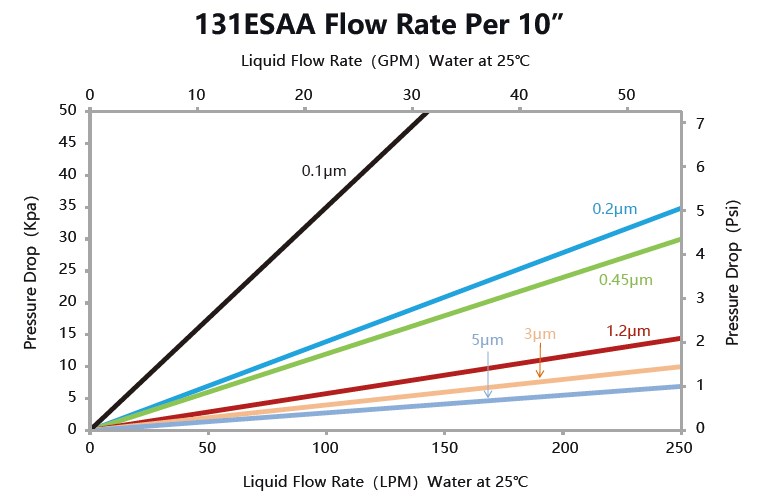

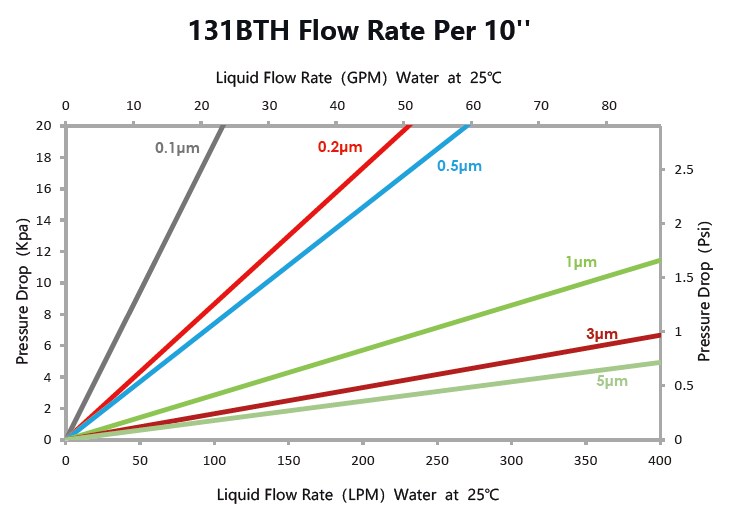

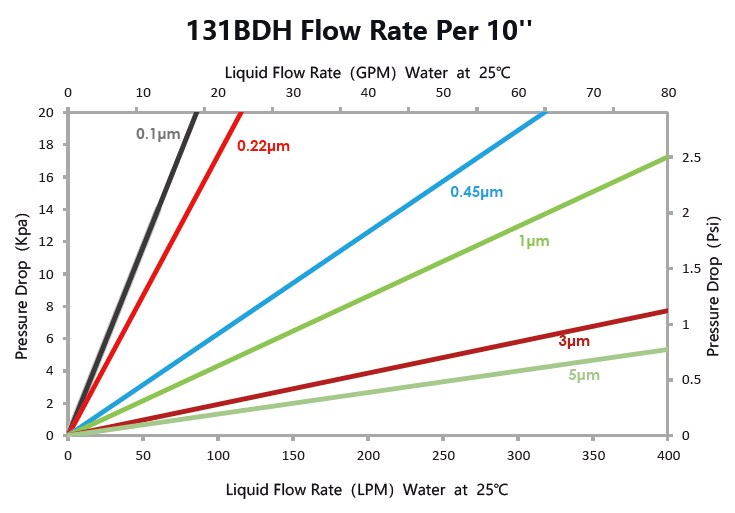

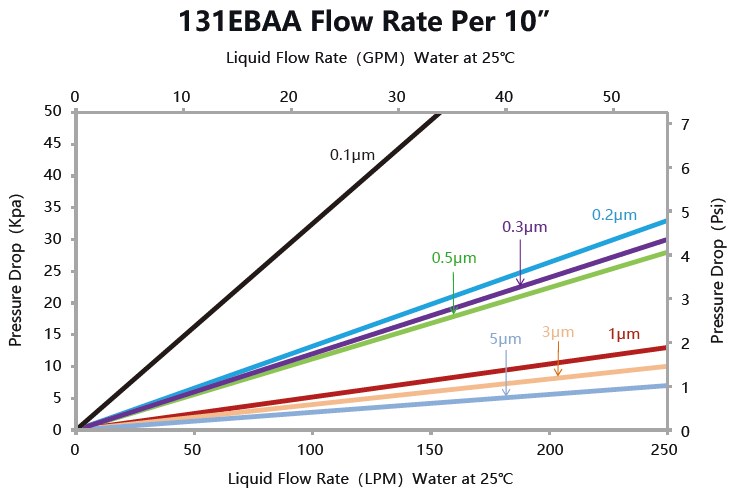

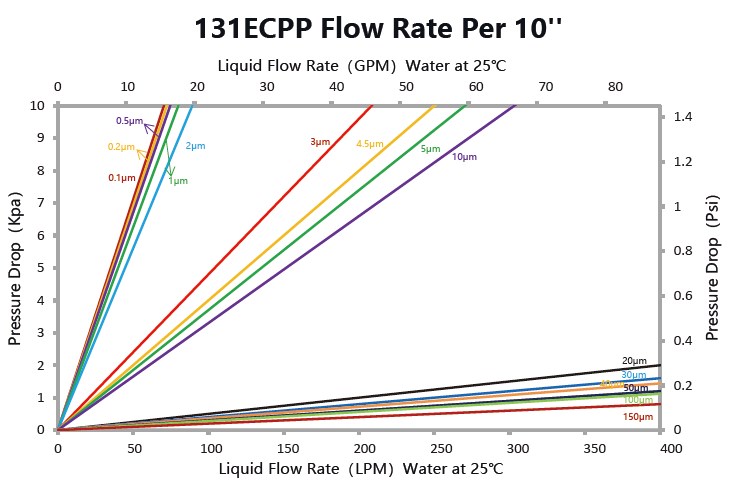

Liquid Flow Rate Per 10'

（GPM）Water at 25℃

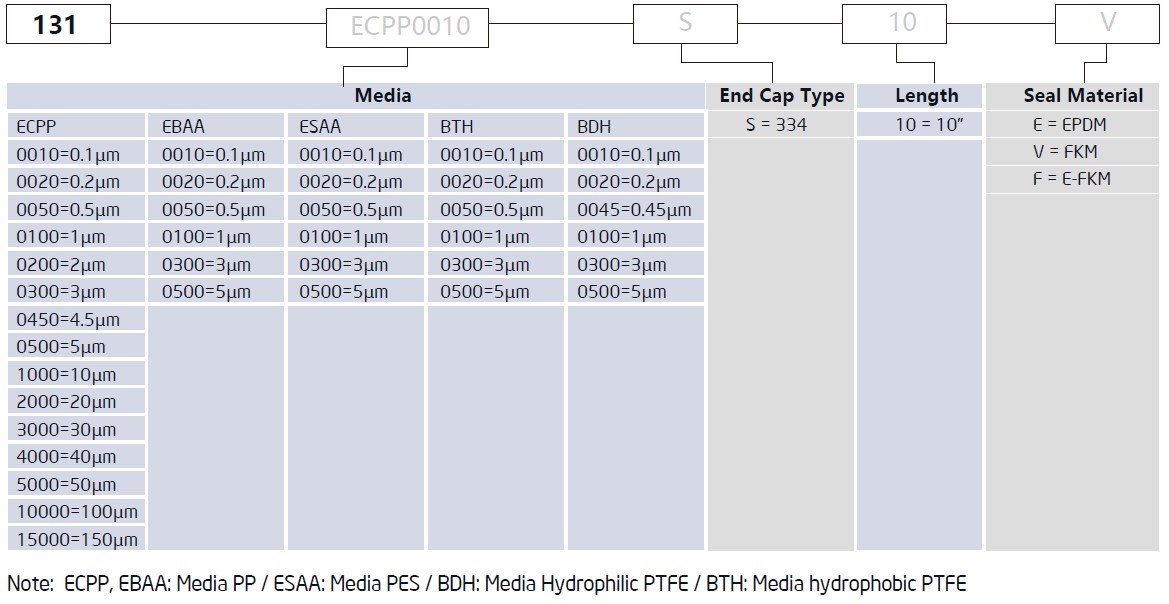

Order Information

Downloads
