HC Series – Pleated Filter Cartridges

HC Series pleated cartridges are pleated from polyester fibre cloth, which offers good mechanical properties and high-temperature resistance. The medium, centre core and both end caps are potted as one piece, and the threaded connection gives reliable sealing and easier installation. A 197 mm extra-large outside diameter combined with the pleated design provides a large filtration area, high flow and long service life, extending the change-out interval and reducing labour cost. Widely used where large water output is required.

Learn more

Home » HC Series – Pleated Filter Cartridges

Overview Specifications Ordering Information Downloads

HC Series Pleated Filter Cartridges have a big diameter of 197mm which increases filtration area, made of pleated polyester filter media, providing lower initial pressure drop, higher flow rates, and longer life. The center core, end cap, and filter media are poured as one unit, which provides additional strength and a positive seal. The long service life and high flow rate result in low investment and less labor cost in many applications.

Features

Available in three sizes for all your high flow requirements: 40, 90 and 170 Series
Cartridges are cleanable and reusable
Pleated design provides large filtration area
High flow rate, low pressure drop, long service life

Applications

Swimming pool & Spa
Pre-filtration of RO
Potable drinking water
Cooling tower filtration
Desalination prefiltration
Food & Beverage
Industrial wastewater treatment
47.Oil & Gas
Paints, Inks & Coatings
Paper & Pulp
Process water

Specifications

Dimension
Outer Diameter	7-3/4" (197mm)
Length	9-5/8" (245mm),19-1/2" (495mm),30-3/4" (781mm)
Material of Constructions
Media	Polyester
End cap	PU, Plastisol
Performance
Max. Operating Temperature	60℃(140℉)
Max. Operating DP	2.75 bar(40psi)

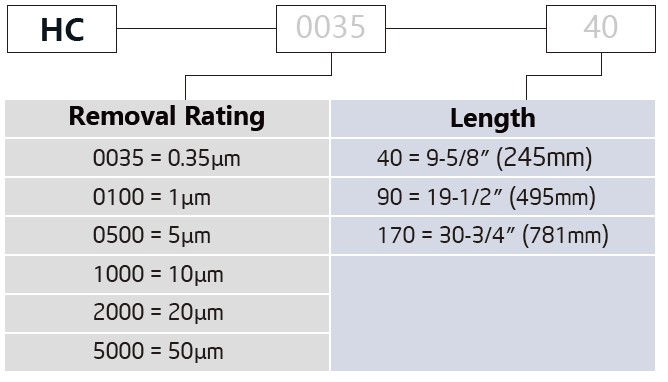

Order Information

Downloads
