THF Series – High Flow Polyester Pleated Filter Cartridges
THF Series – High Flow Polyester Pleated Filter Cartridges
THF Series high-flow pleated cartridges are built entirely from polyester hardware. The all-polyester membrane construction handles precision filtration of liquids containing aromatic solvents such as benzene and toluene. Polyester offers good temperature and pressure resistance, allowing the cartridge to run continuously at 120 °C for up to a week.
Learn moreHome » THF Series – High Flow Polyester Pleated Filter Cartridges
THF Series Filter Cartridges feature all-polyester construction with high-efficiency retention performance. Superior chemical tolerance versus polypropylene for benzene, methylbenzene, and aromatic hydrocarbon solvents. Superior temperature tolerance versus polypropylene, allowing use in up to 120°C for periods. Thermally-bonded construction assures integrity and low degree of extractable substances.
Features
- Substantial effective filtration area allows for long operat-ing service life.
- 100% polyester construction provides chemical compatibili-ty where polypropylene isn’t suited.
- Media composition is structured for ratings of 0.5 to 5microns.
- Optional micro-glass media options provide enhanced retention efficiency.
Applications
- Filtration of benzene and methylbenzene.
- Filtration of aromatic hydrocarbon solvents.
Specifications
| Dimension | |
| Outer Diameter | 152mm (6”) |
| Length | 1026mm (40”), 1524mm(60”), 1540mm (60”L) |
| Filtration Area | 3.35m²/40“ , 5 m²/60“ |
| Material of Constructions | |
| Media | GF, PBT |
| Support Layers | Polyester |
| Cage/Core/End Caps | Polyester |
| Seal Material Options | EPDM, FKM |
| Performance | |
| Max. Temperature | 120° C (248° F) |
| Max. dP (forward) | 4 bar (60 psi) @ 20°C (68°F) |
| Recommended Change-Out dP | 2.4 bar (35 psi) @ 80°C (176°F) |
Quality
- Filter cartridges are manufactured in a production facility using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Full materials traceability is documented for all finished lots.

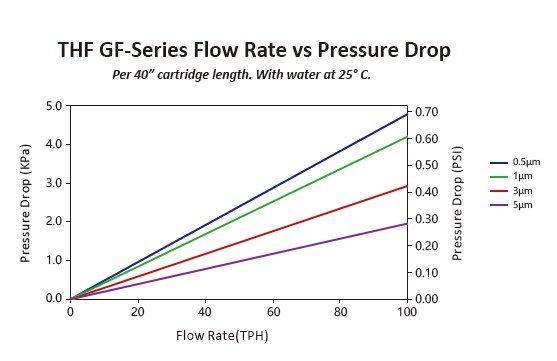

Flow Rate

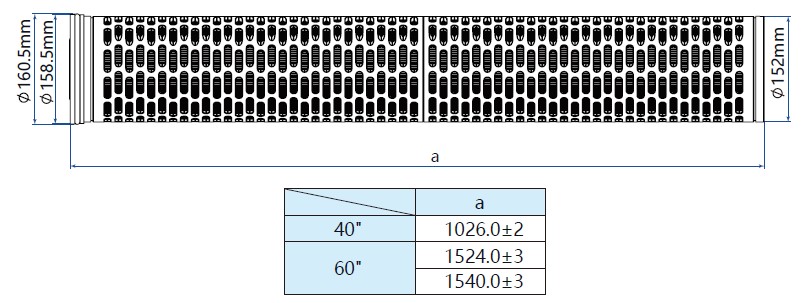

Dimensions

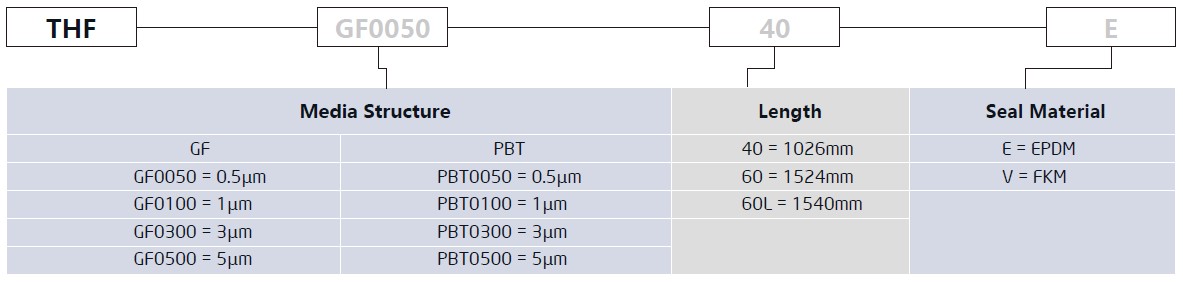

Order Information
