PHF Series – High Flow Pleated Filter Cartridges
The PHF Series was developed to meet market demand for high-flow pleated cartridges. Deep fine membrane media and a multi-layer graded pore structure deliver higher dirt-holding and dust capacity. It is single-open-end, with flow from outside to inside. The 6.7 in large diameter increases filtration area and dirt capacity, reducing the number of cartridges required and lowering cost. Select the model that matches each filtration duty.
Learn moreHome » PHF Series – High Flow Pleated Filter Cartridges
PHF Series High Flow Pleated Filter Cartridges are single open-ended cartridges in 6.7 inch diameter with outside to inside flow pattern. It offers a high flow rate solution with quick changes for advanced water filtration systems including industrial and commercial osmosis type water and sea water filtration. It provides a cost effective alternative to 2.5 inch OD style filter cartridges in high flow applications.
Features
- Available in economic/nominal/absolute structure, particle removal rating from 0.5 to 100 Micron
- 100% polypropylene components provide broad chemical compatibility, suitable for a variety of fluids
- High dirt holding capacity and longer service life
Applications
- Food & Beverage
- RO Pre-filtration
- Process water
- Wastewater
- Sea water desalination
- Oil & Chemical
- Power plant water treatment
- Machinery & Equipment
Specifications
| Dimension | |
| Outer Diameter | 172mm |
| Inner Diameter | 81mm |
| Length | 40”, 60” |
| Material of Constructions | |
| Media | PP |
| Support | PP |
| End Cap Material | PP |
| Seal Material Options | EPDM, NBR |
| Performance | |
| Max. Operating Temperature | 82℃(179.6℉) |
| Max. Operating DP | 2.4 bar(35psi) |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
- Filter cartridges meet the requirements of European Commission Directives (EU10/2011)

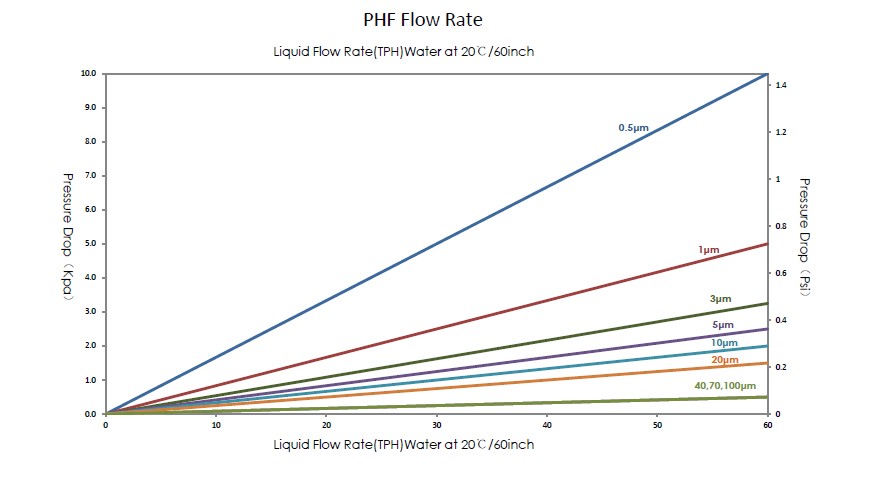

Flow Rate

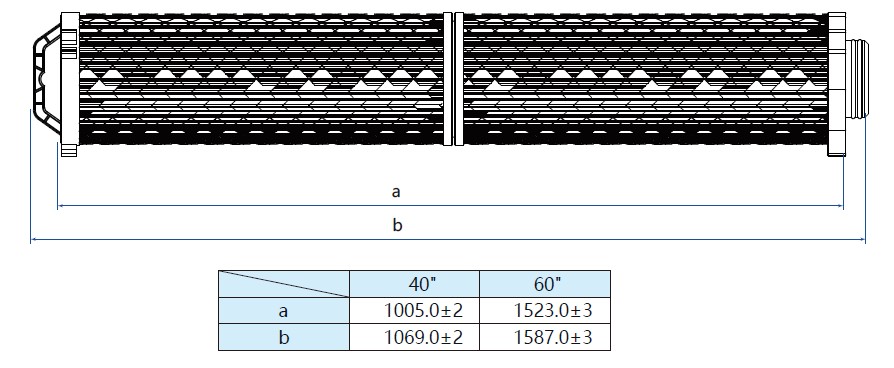

Dimensions

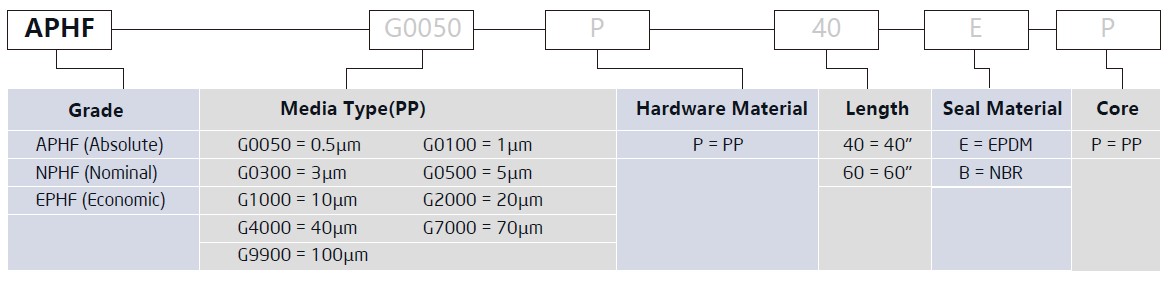

Order Information
