MHF Series – High Flow Pleated Filter Cartridges
MHF Series – High Flow Pleated Filter Cartridges
The MHF Series has a 6.5 in large diameter with a maximum filtration area above 6 m² and flow up to 60 t/h. An internal PP core provides reinforced support, the flow path is outside-to-inside, and higher differential pressure can be withstood. Deep fine media and a multi-layer graded pore structure deliver higher dirt-holding and dust capacity.
Learn moreHome » MHF Series – High Flow Pleated Filter Cartridges
MHF Series High Flow Pleated Filter Cartridges are made from depth fine PP non-woven fabrics. The filter has a big dimeter of 163.5mm/166mm. The cartridge is designed with an outside to inside flow pattern, and with inner core. The long service life and high flow rate save investment and manpower.
Features
- Available in economic / nominal / absolute structure, particle removal rating from 0.5 to 100 micron
- 100% polypropylene components provide broad chemical compatibility , suitable for use in a variety of fluids
- With depth fine non-woven fabrics and scientific design, the filter has a good structure which offers high dirt holding capacity, and result in long service life.
- Higher flow capacity reduces required number of cartridges
Applications
- Food & Beverage
- RO Pre-filtration
- Process water
- Wastewater
- Sea water desalination
- Oil & Chemical
- Power plant water treatment
- Machinery & Equipment
Specifications
| Dimension | |
| Outer Diameter | 163.5mm, 166mm |
| Length | 20”, 40”, 60” |
| Material of Constructions | |
| Media | PP |
| Cage/Core/End cap | PP |
| Seal Material Options | Silicone, EPDM, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max. Operating DP | 3 bar(44psi)@ 20℃(68℉) |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
- Filter cartridges meet the requirements of European Commission Directives (EU10/2011)

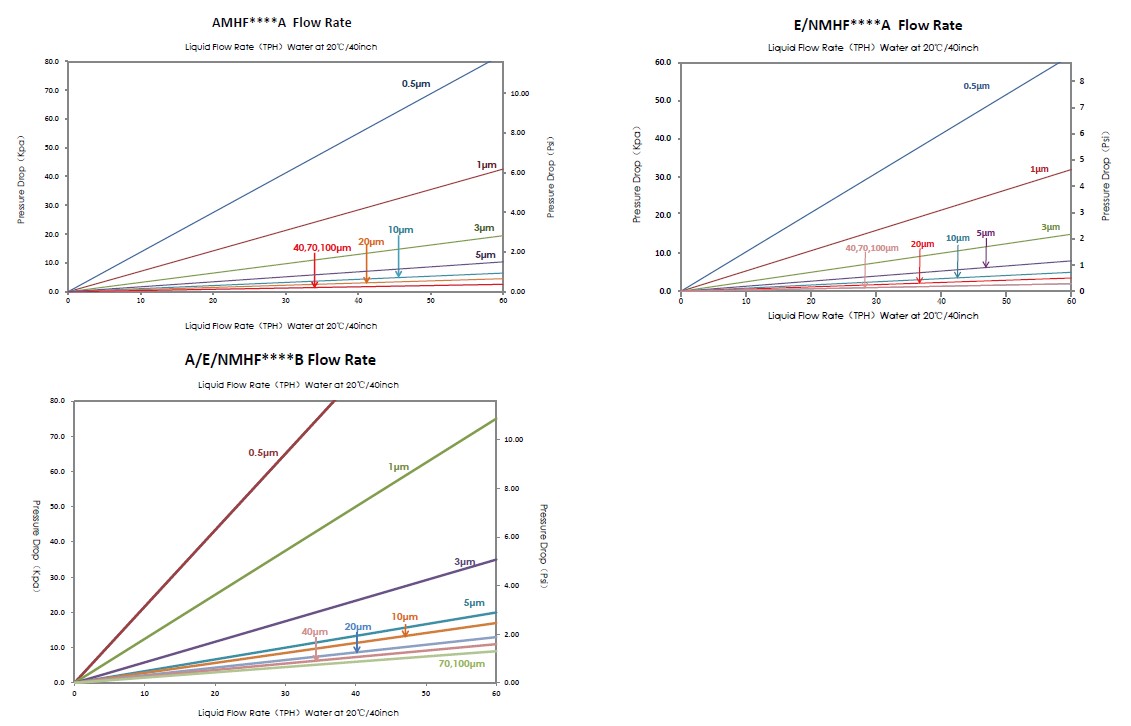

Flow Rate

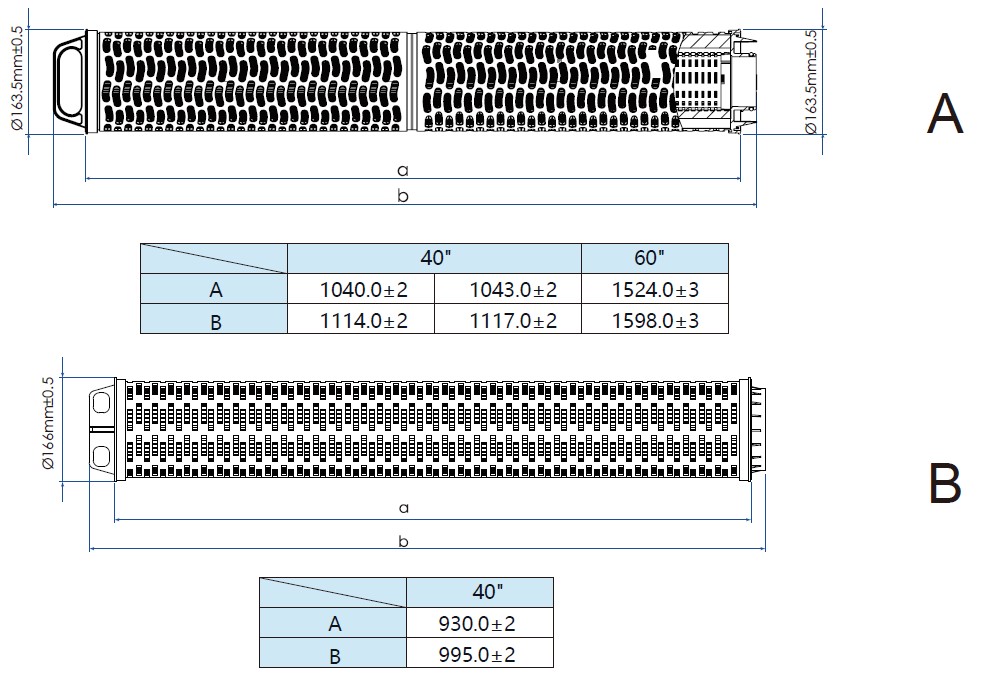

Dimensions

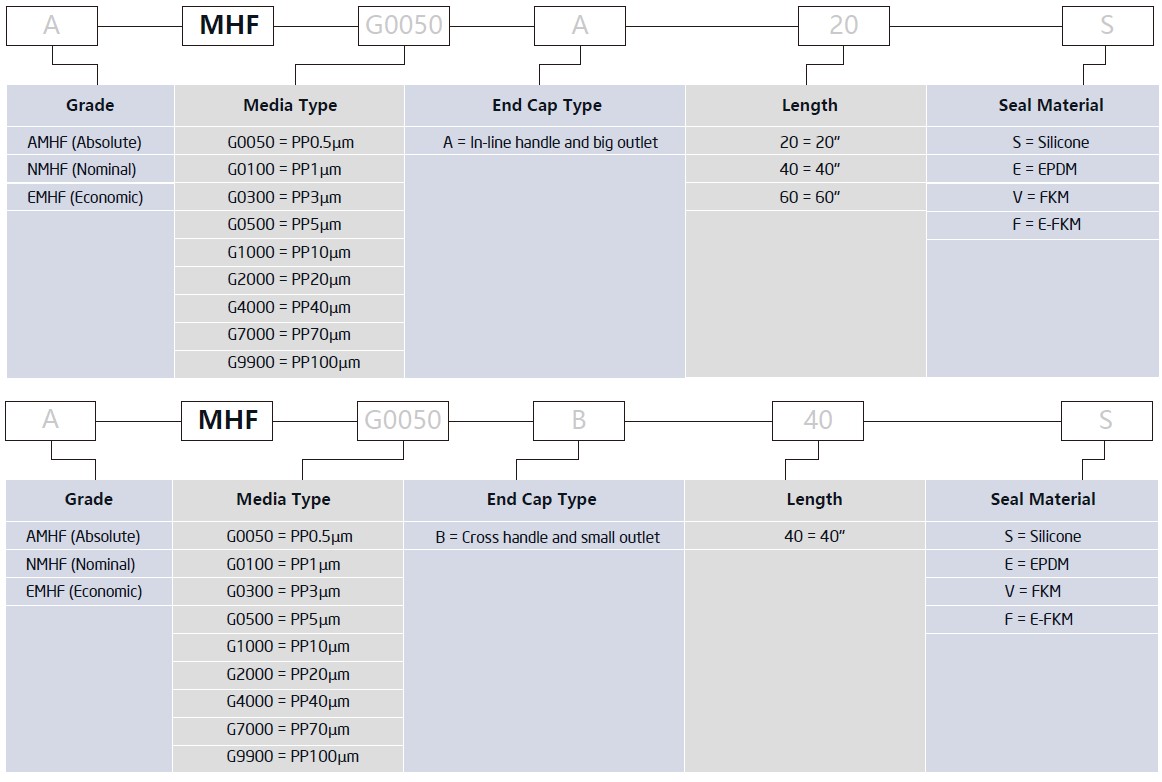

Order Information
